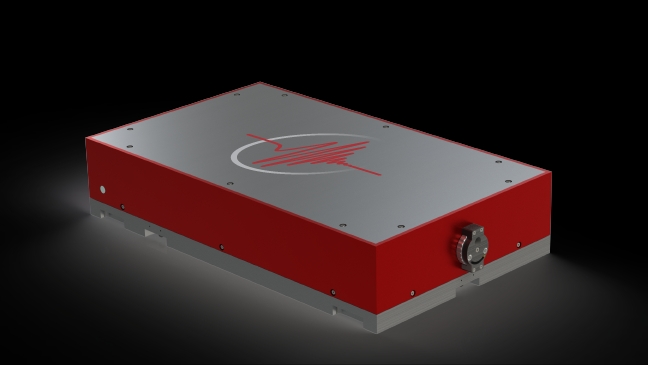

StrydeTM - Ultrafast Ti:sapphire oscillator
The next generation of engineered reliability:closed-box and hands-free
The StrydeTM is KMLabs’ tunable ultrashort-pulsed ti:sapphire-based oscillator.
It is a fully engineered and integrated commercial source based on a singlerugged opto-mechanical platform.
Applications
• Ultrafast amplifier seeding
• Frequency conversion UV to mid-IR
• Pumping OPOs
• Materials Research
• Femtochemistry
• Spectroscopy
• THz Generation
• Ultrafast Imaging
• 2-photon polymerization
• Pump-probe experiments
• Optical coherence tomography
Features
• Average powers up to > 500 mW
• Maximum pulse energy > 6 nJ
• Computer control of the centerwavelength and bandwidth of theoscillator spectrum
• Computer controlled pulse duration
• < 12 fs standard with < 10 fs option• Excellent beam quality: M2 typically< 1.2
• One-box configuration with integratedpumps
• Graphical, intuitive software controlwith integrated diagnostics
• Custom configurations available
StrydeTM Unique Features
• Computer-controlled tuning of center wavelength
• Computer-controlled tuning of spectral bandwidth
• Ultrashort sub-12 fs pulses

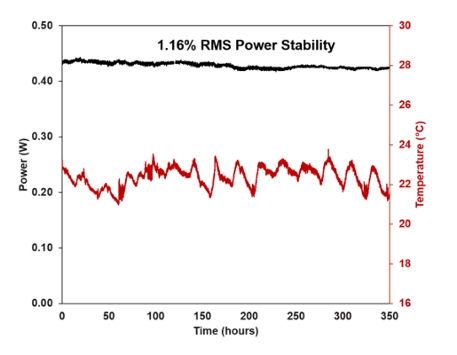

• Temperature-stabilized optical platform for enhanced long-term stability
