| Spectral range | >3 THz | | Dynamic range | >60 dB (typically 80 dB) | | Total scan range | up to 10 ns (pulse-to-pulse distance) | | Rapid sampling rate | >1 kHz | | Laser specifications |
| | Laser output ports for THz | Two fiber coupled ports, 1560 nm, FC/APC, PM fiber | | Laser system repetition rate | 100 MHz | | Dimensions / weight |

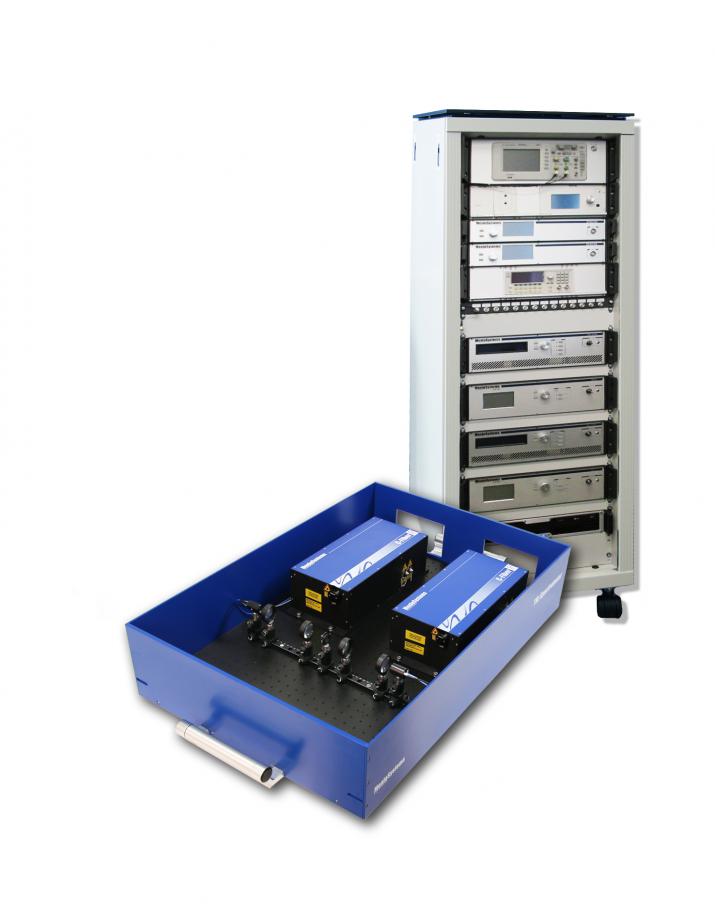

| | Optical unit | 900 x 600 x 200 mm3, 34 kg | | THz control electronics | mounted in a 19” rack cabinet, 800 x 600 x 1800 mm3, 75 kg |
|
